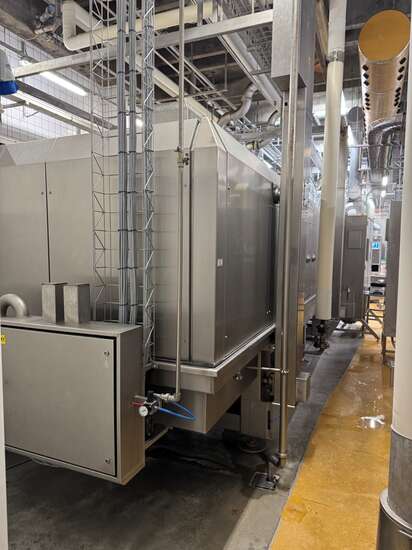

CFS spiral steam tunnel

Product number

3342G

Type

STS600/8/130

Serial number

60

Year of construction

1999

Belt width

600 mm

Tiers

2 x 4 pc.

Belt length

60 m

Product gap

130 mm

Retention time

2.9 - 29 min

Steam

NW40, 4 - 8 Bar

Exhaust

2 x 2000 m³/h

Compressed air

6 - 8 Bar

Power

3 x 400V, 50Hz, 27kW

Dimensions

9200 x 3900 x 4700 mm

Weight

13500 kg

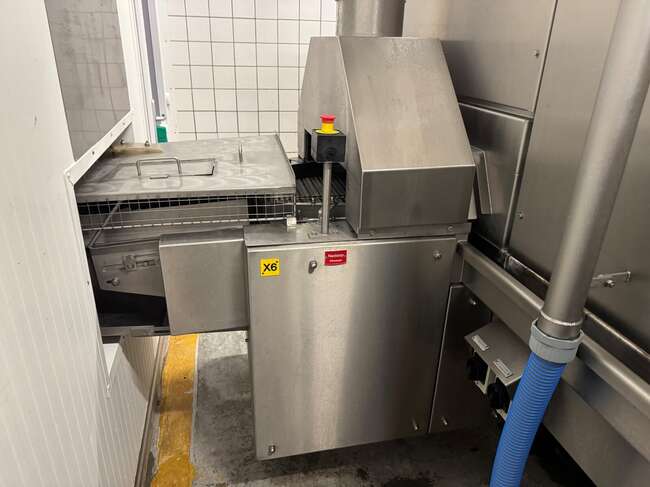

Including continuous belt washer
