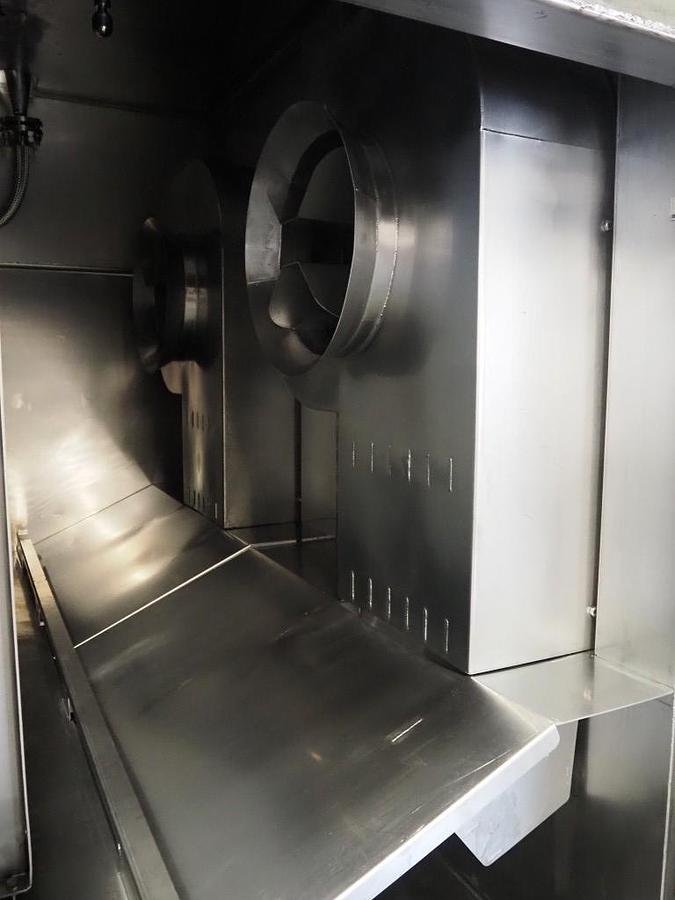

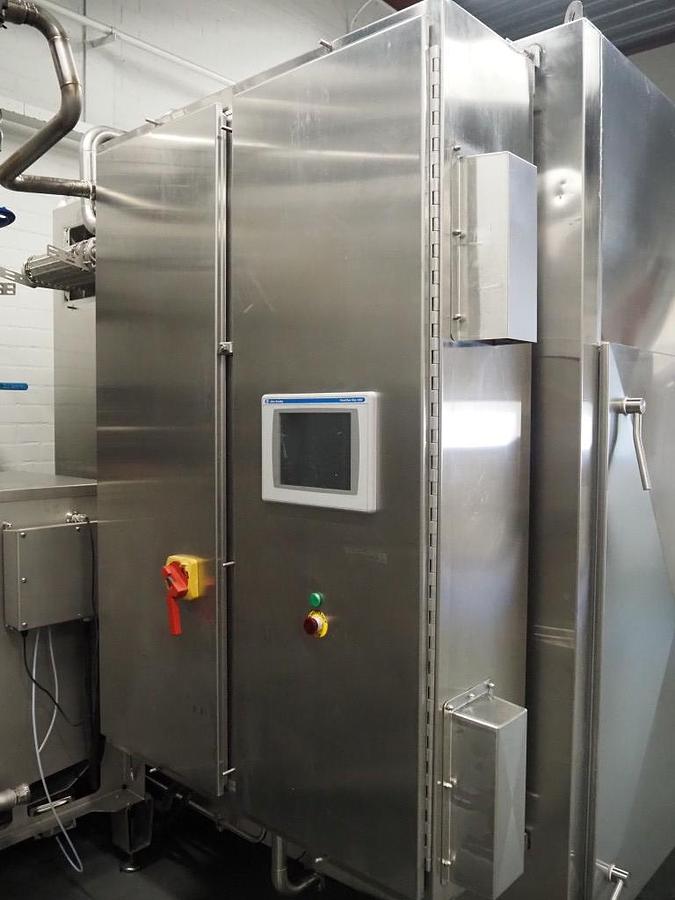

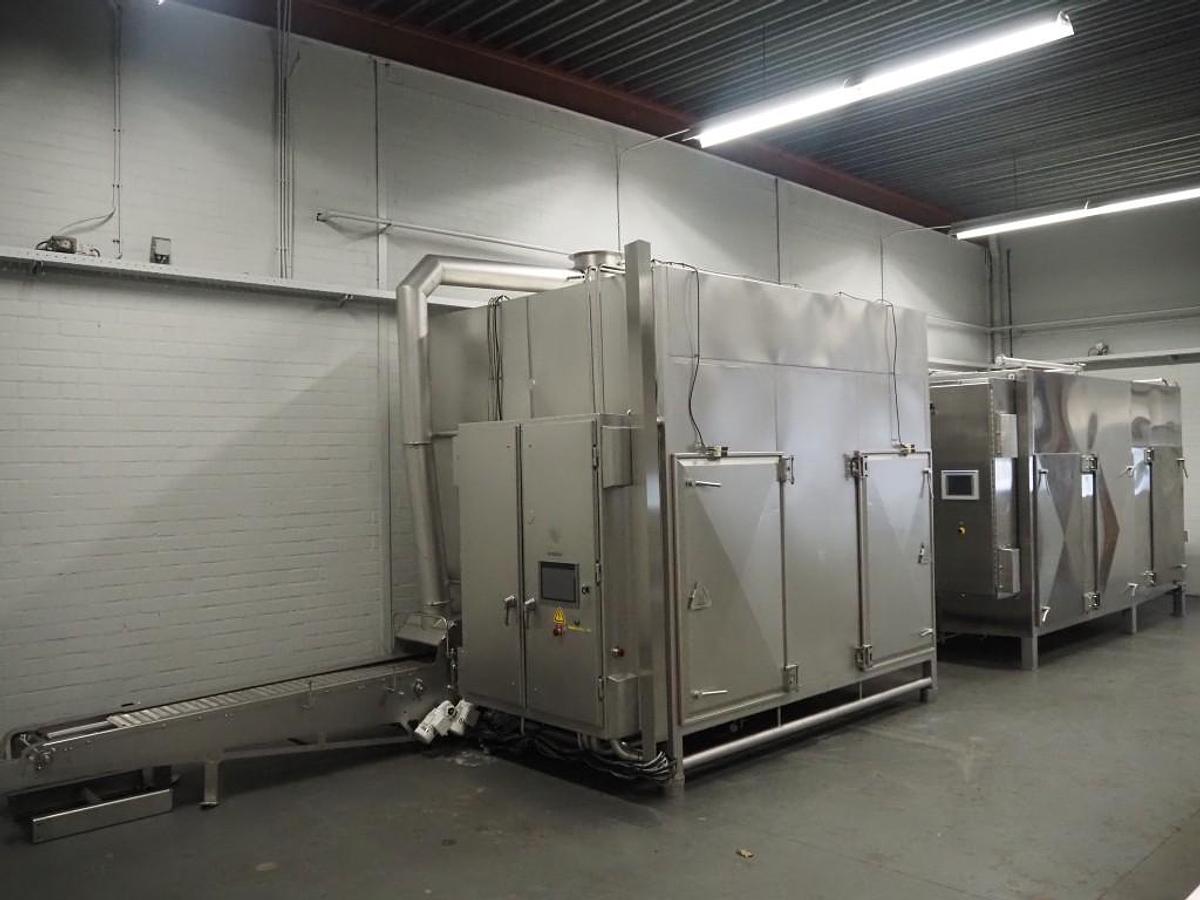

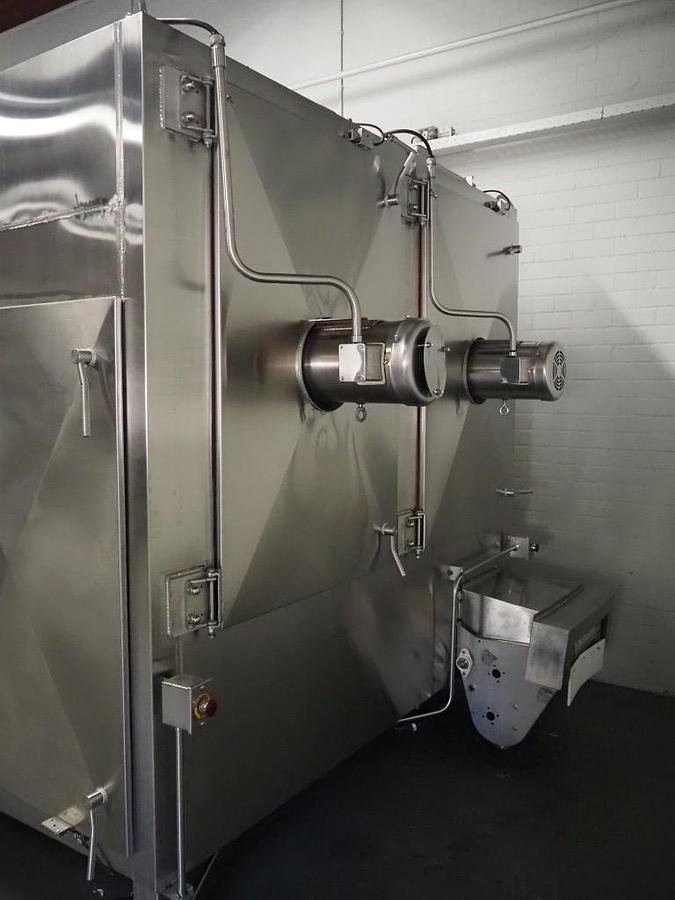

Unitherm spiral oven and spiral freezer

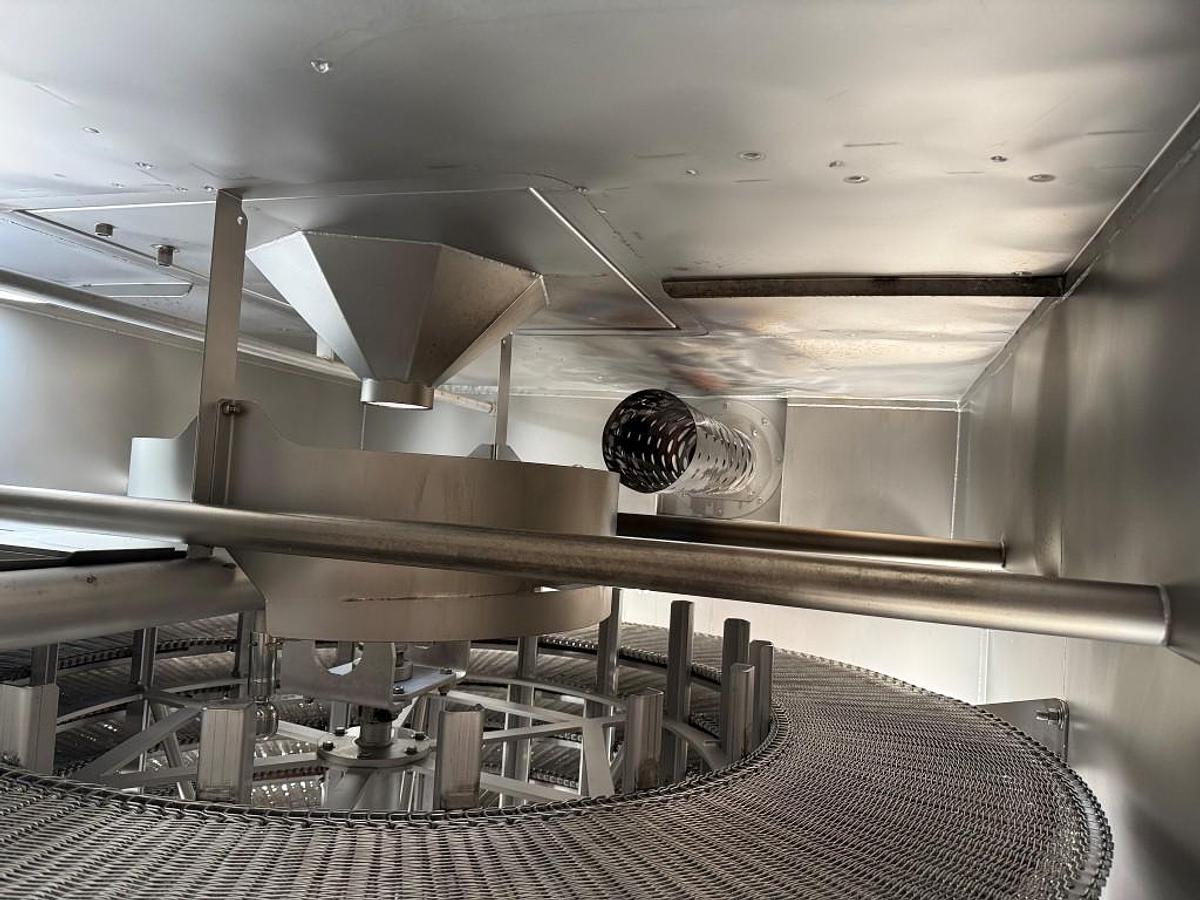

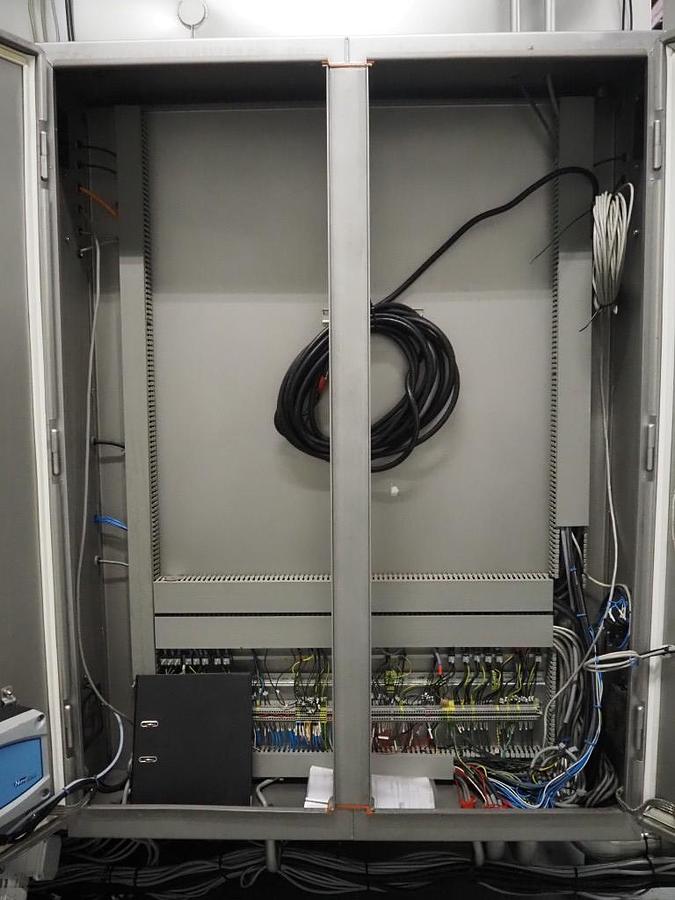

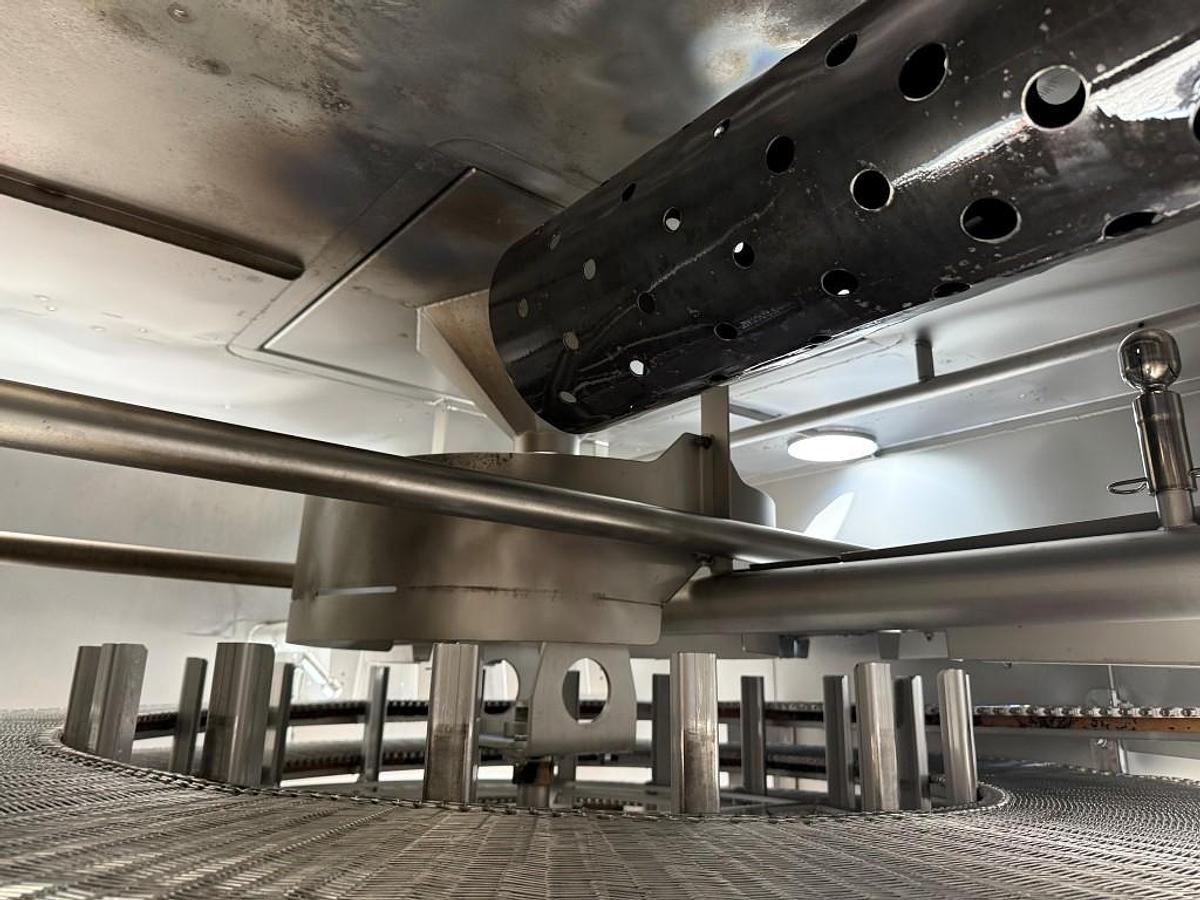

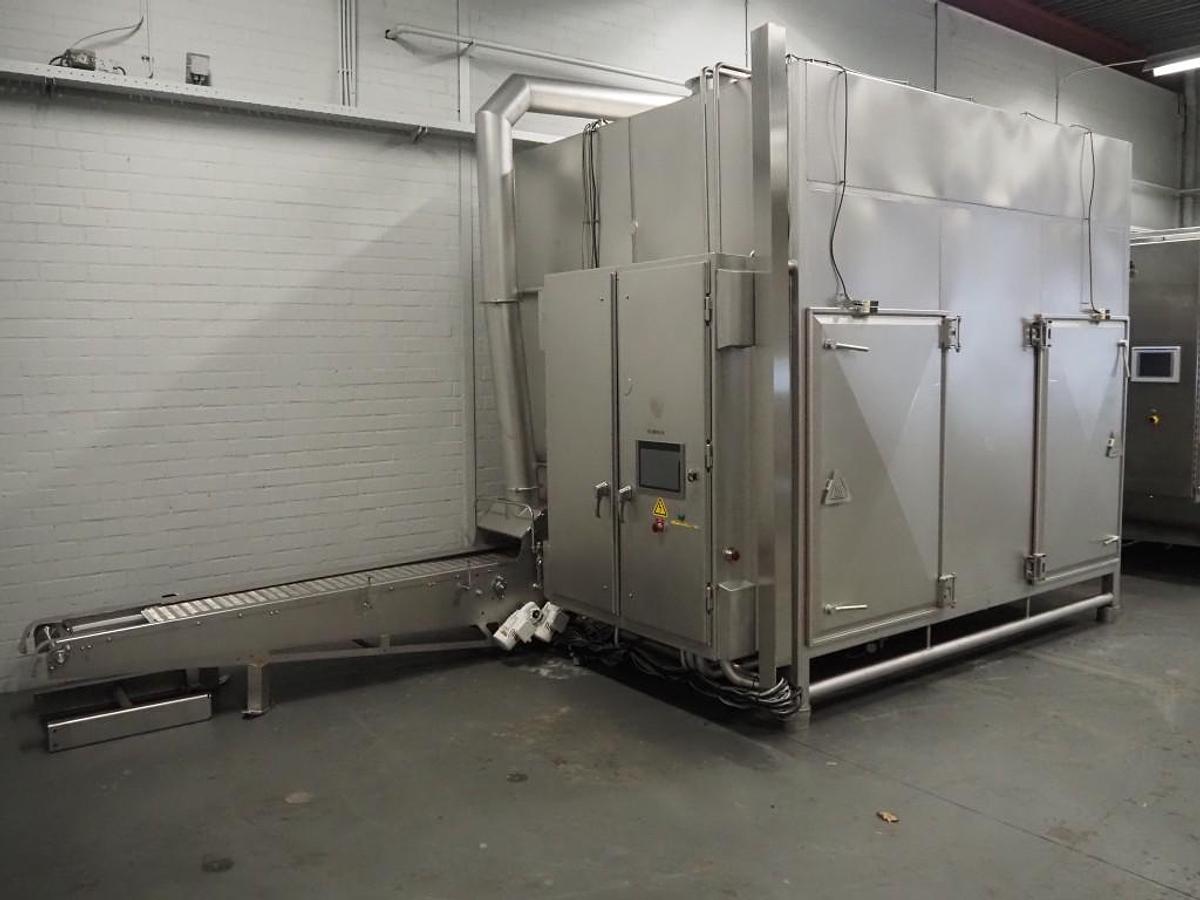

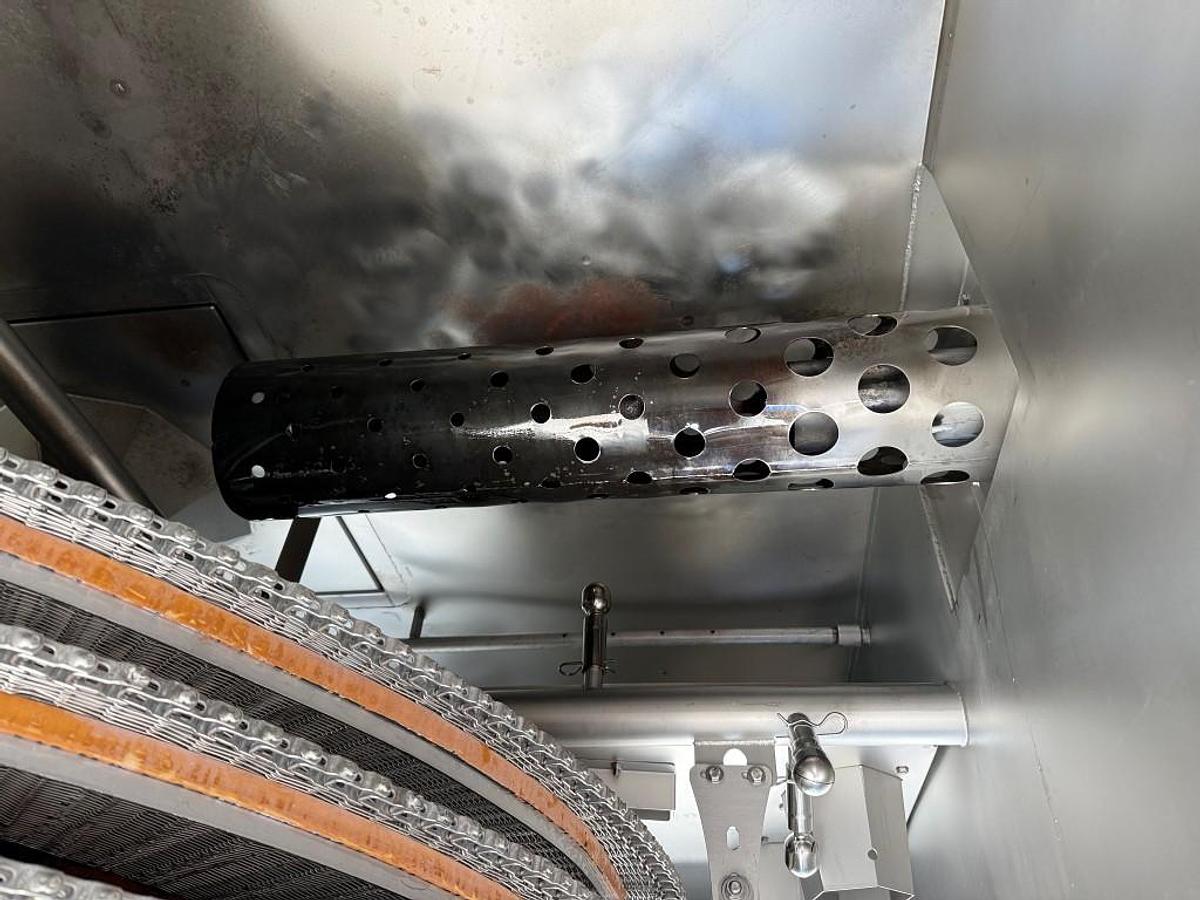

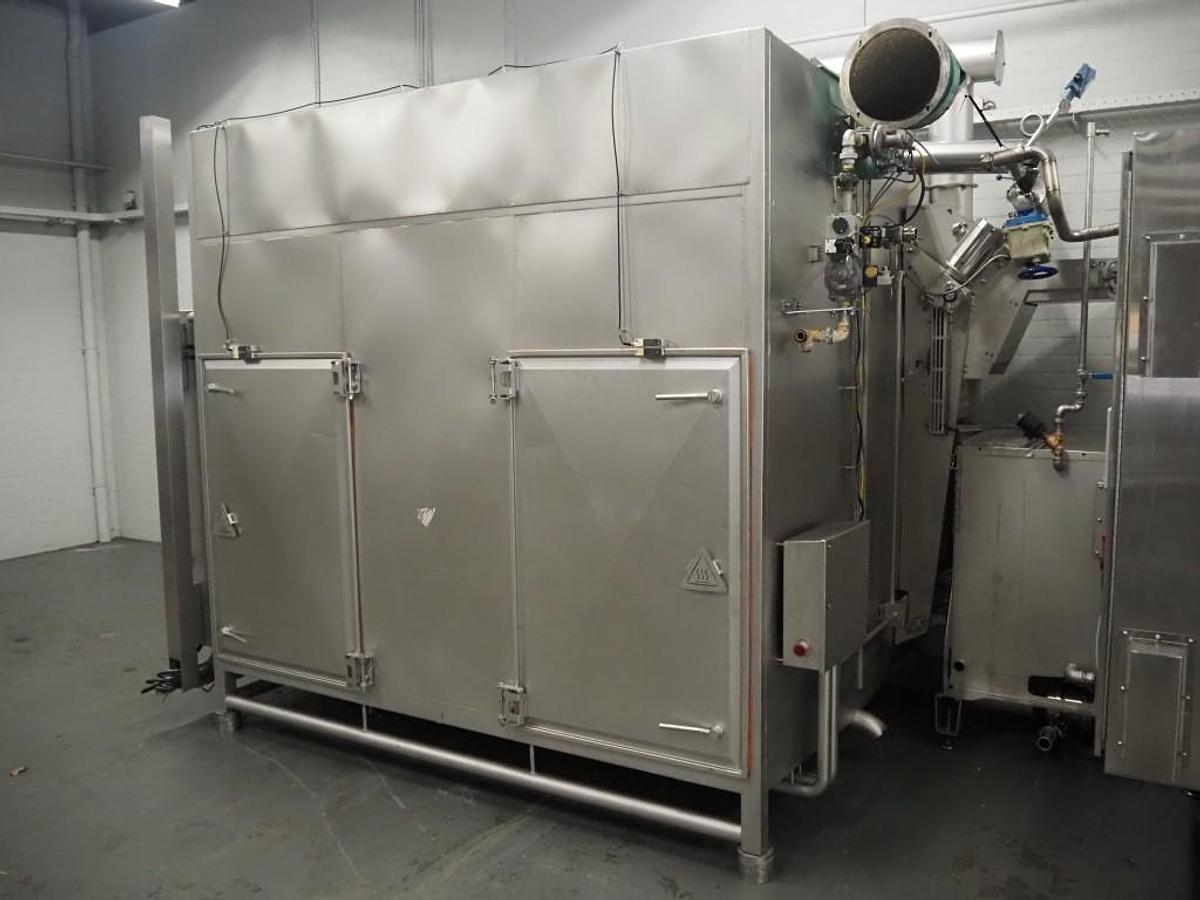

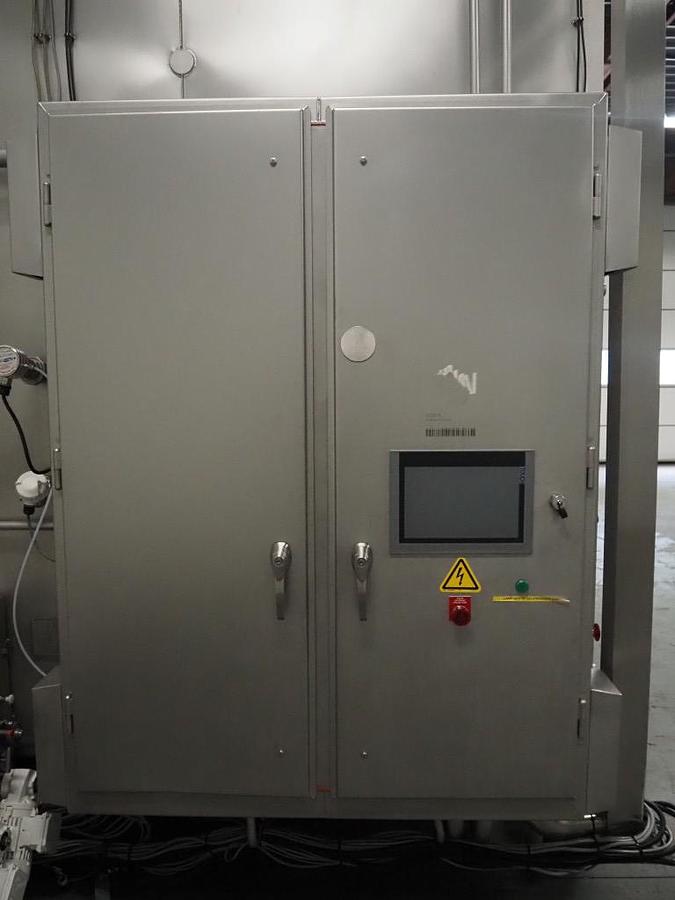

Mini spiral oven

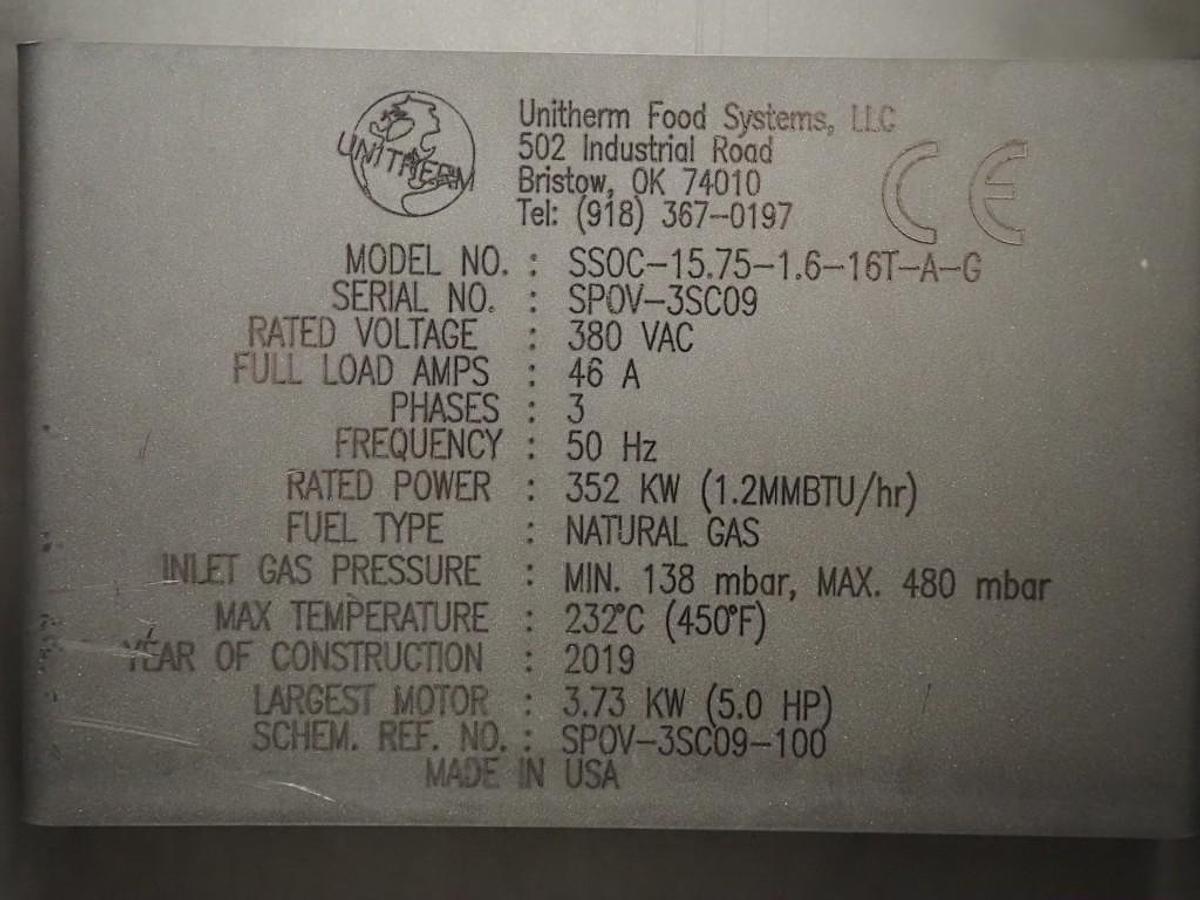

Type: SSOC-15.75-1.6-16T-A-G

Serial number: SPOV-3SC09

Year of construction: 2019

Model: North - South

Execution: Right hand execution

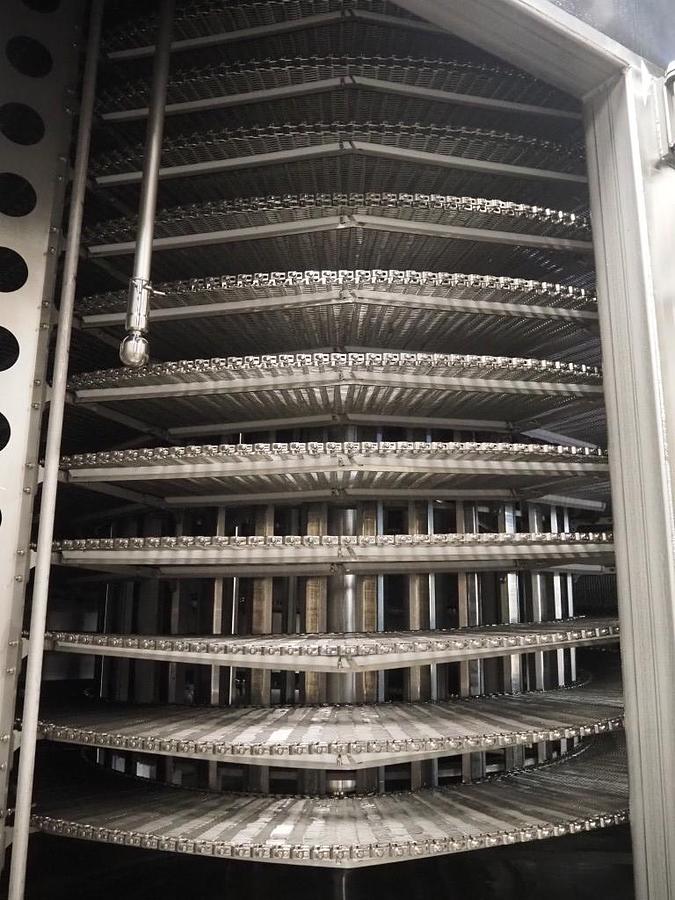

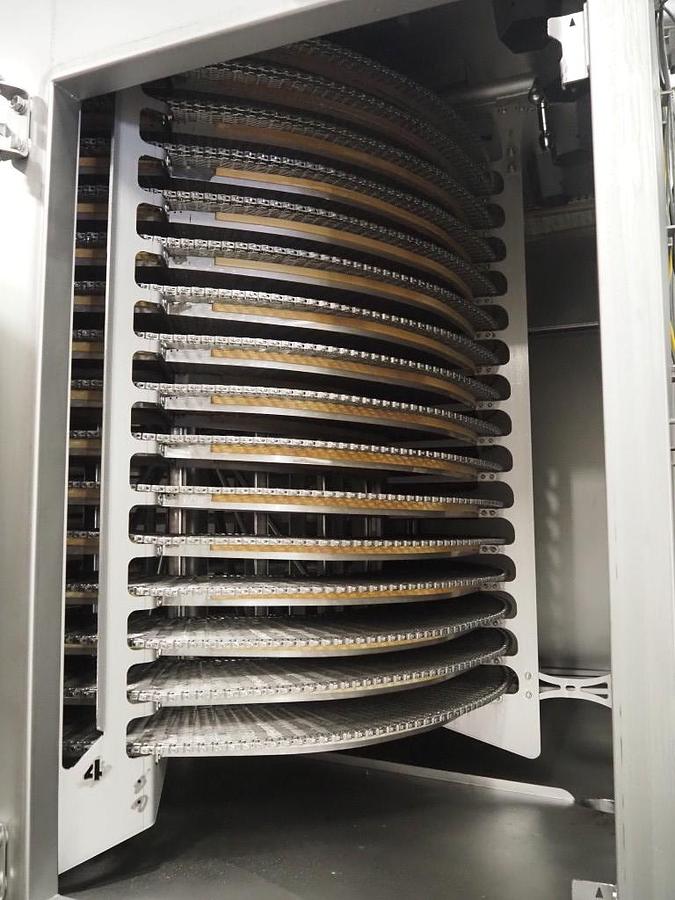

Tiers: 16 pieces

Product gap: 55 mm

Belt width: 400 mm

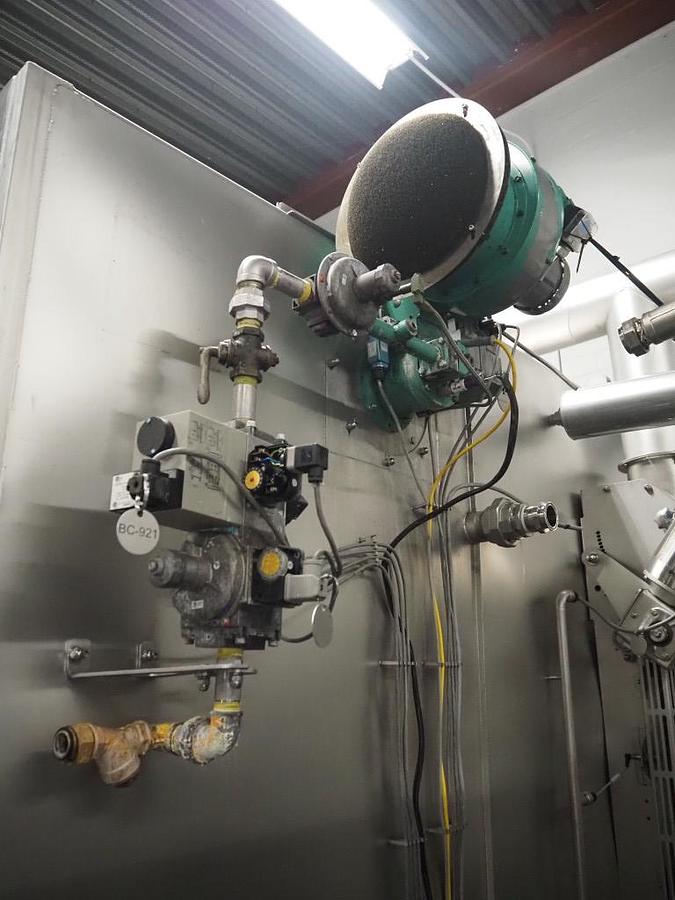

Heating: natural gas, 352 kW

Gas pressure: 138 - 480 mBar

Temperature: max 232 °C

Steam: 270 - 680 kg/h

Power: 3 x 380V, 50Hz, 46A

Dimensions: 6750 x 2600 x 4000 mm

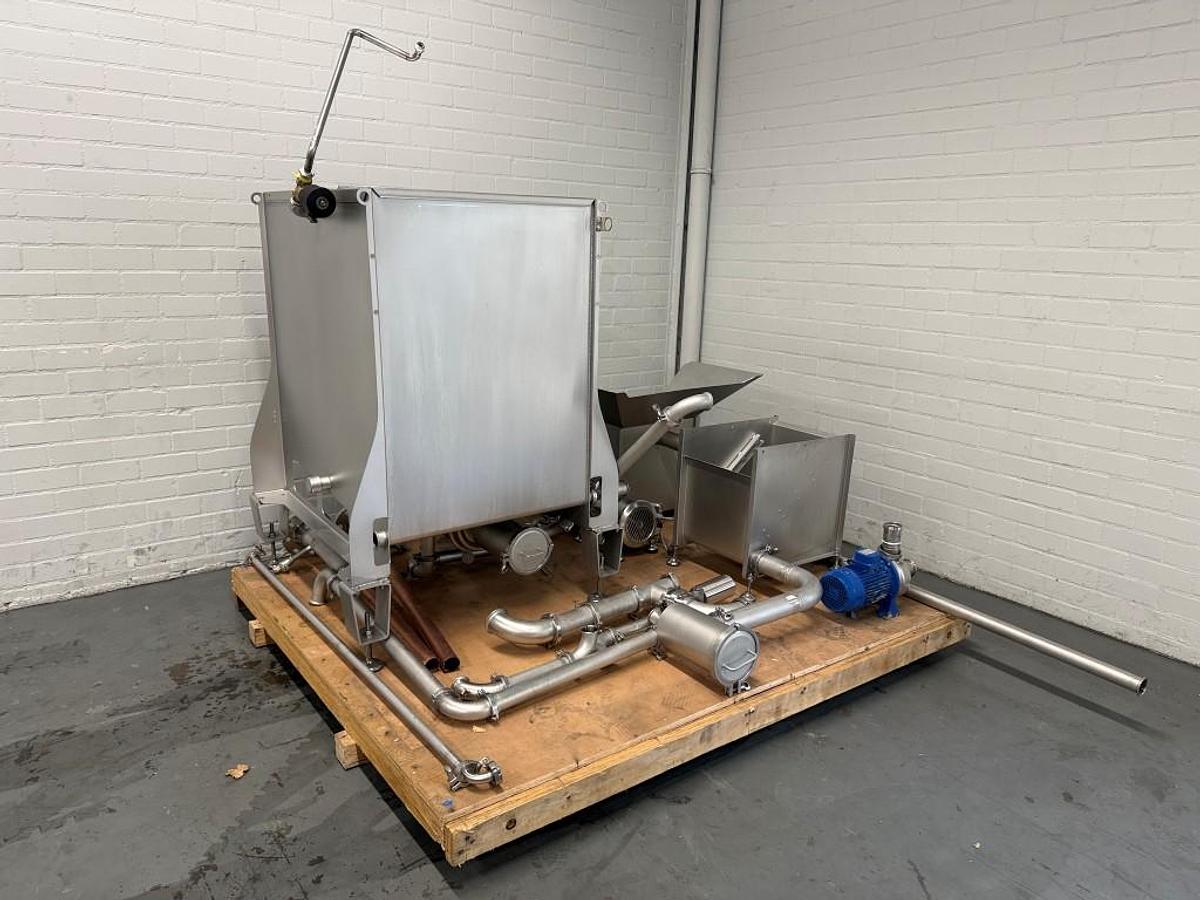

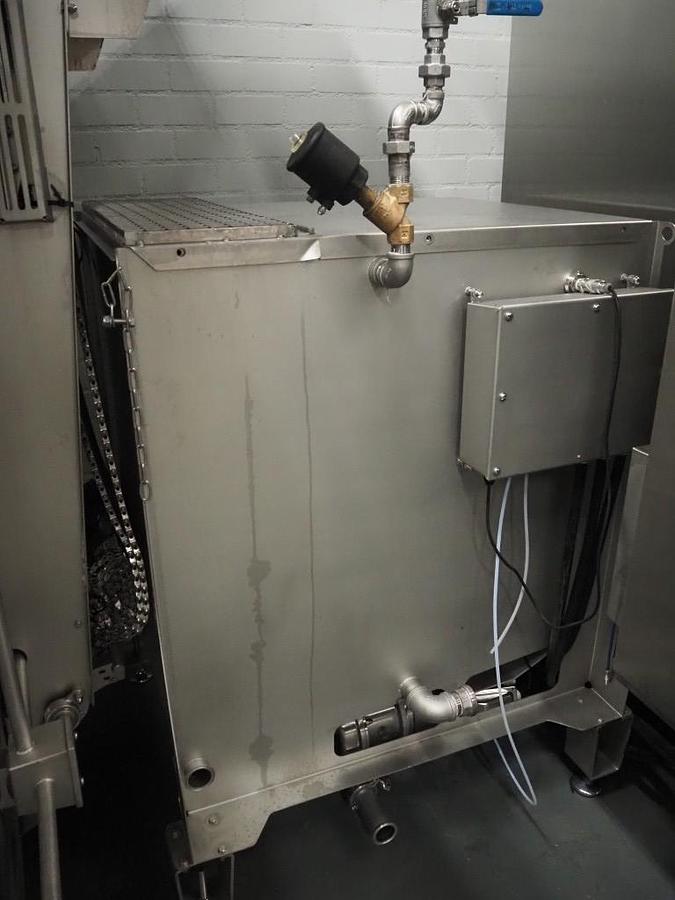

Including belt washer and CIP system

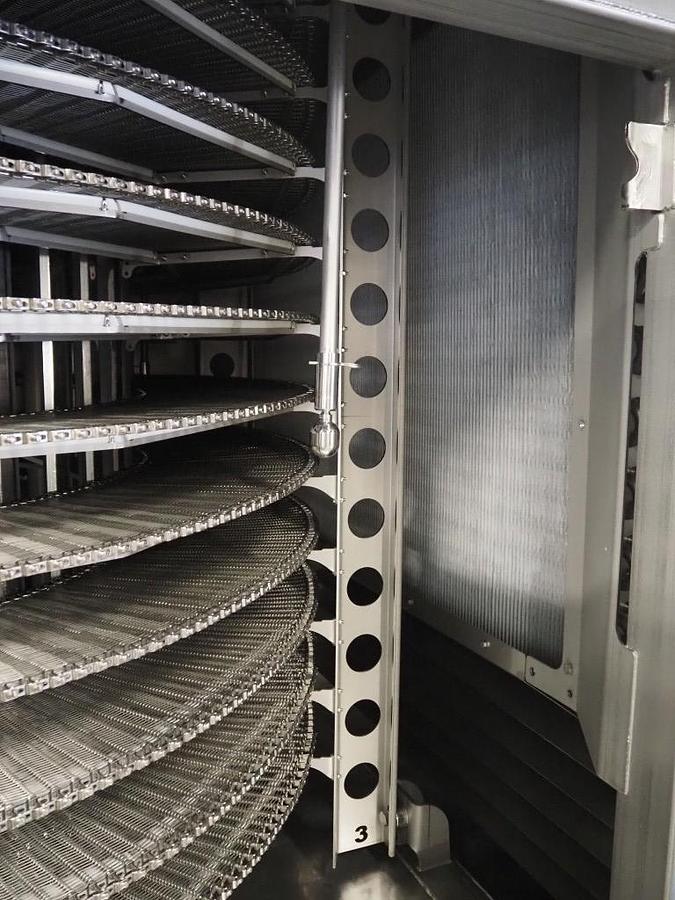

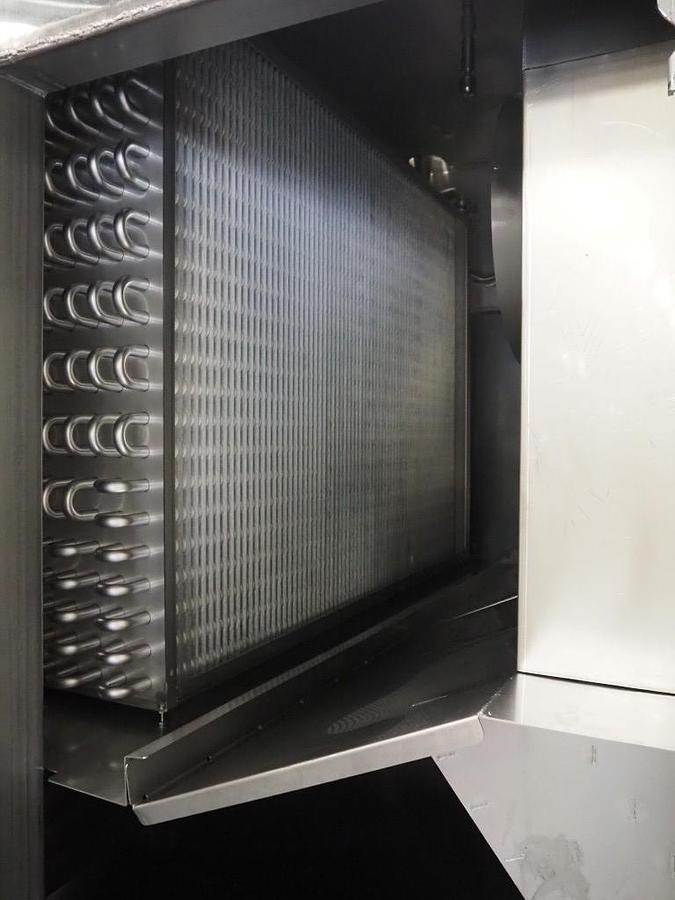

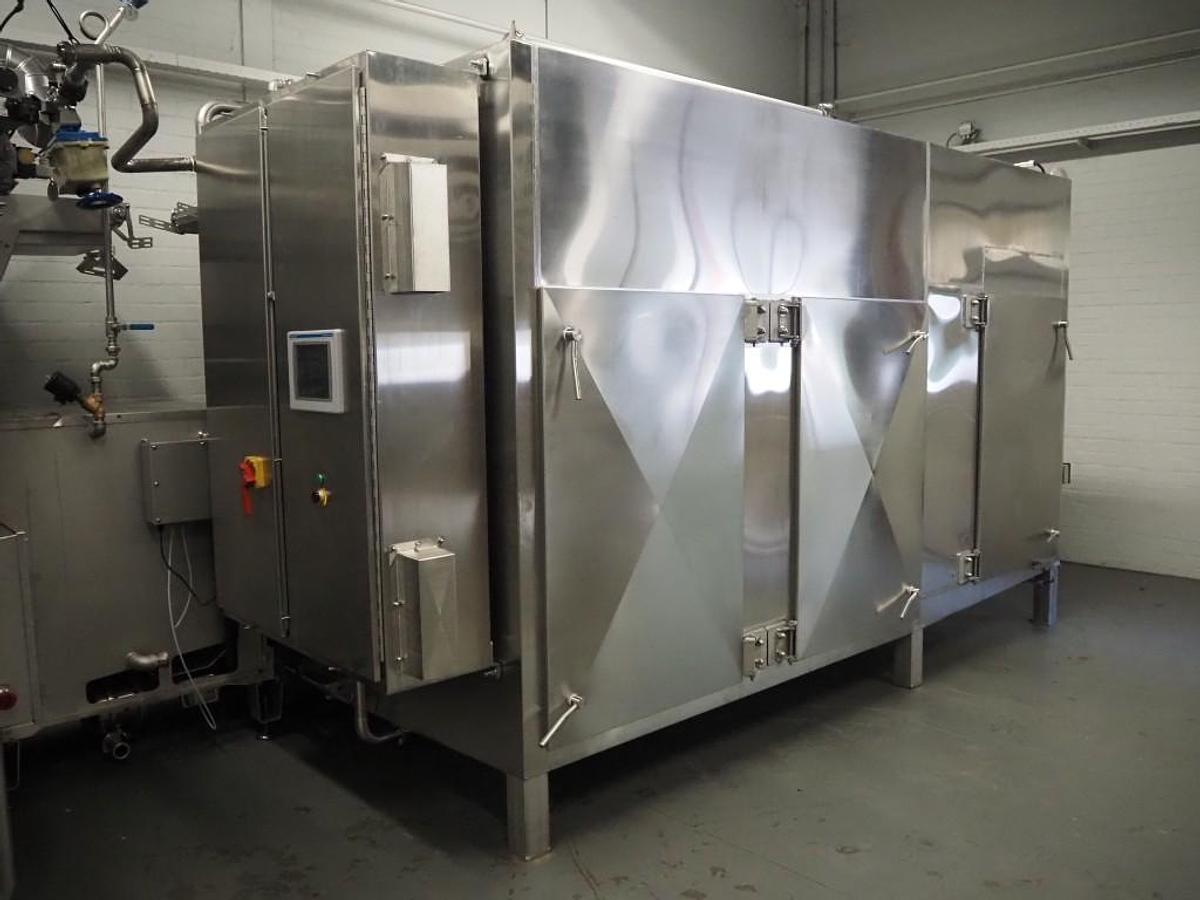

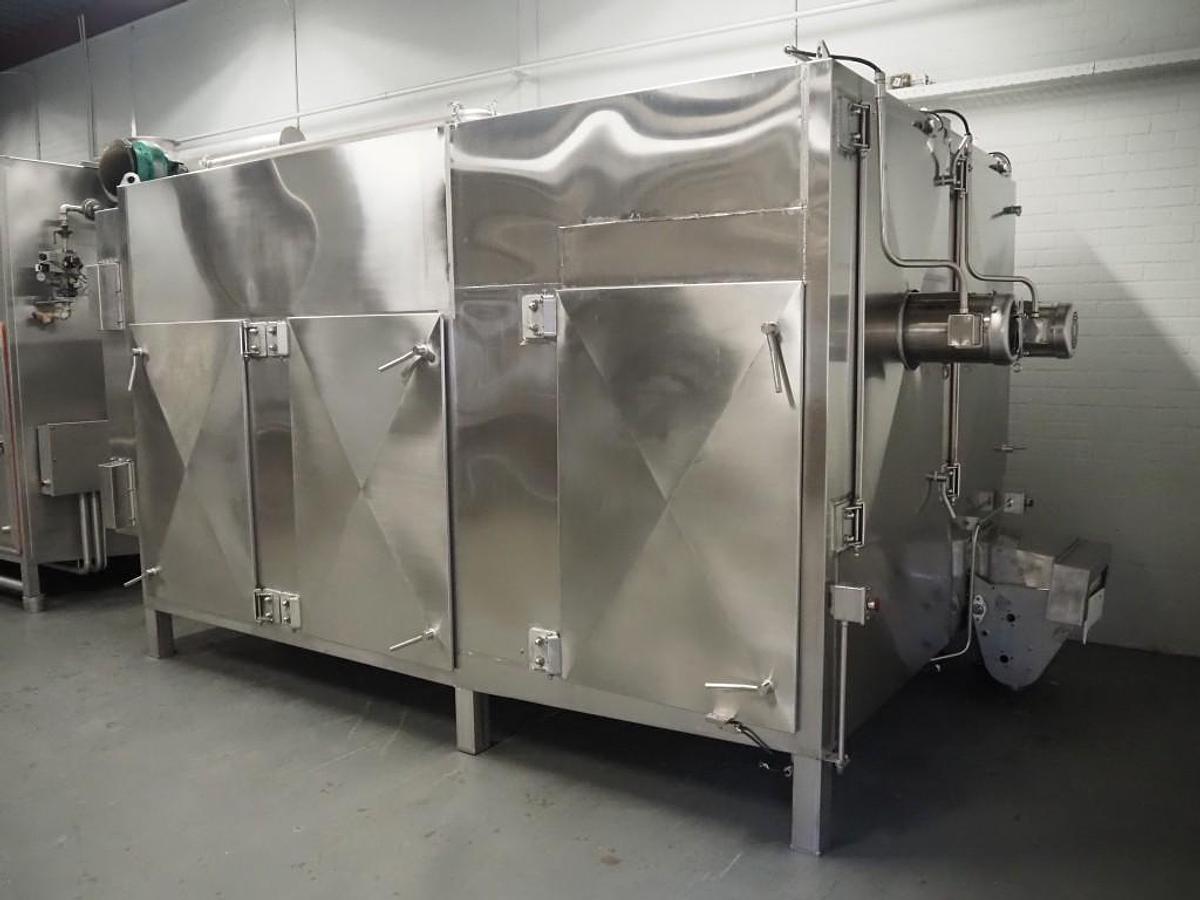

Mini spiral freezer

Type: SSF-16-1.6-12T-GLYC

Serial number: SPFZ-S01

Year of construction: 2013

Model: North - South, top-down

Belt width: 400 mm

Tiers: 12 pieces

Product gap: 105 mm

Refrigerant: Glycol

Cooling power: 70kW

Steam: 113 kg/h (CIP)

Water: 227L/cycle (CIP)

Power: 3 x 380V, 50Hz, 57A

Dimensions: 5400 x 2600 x 3150 mm

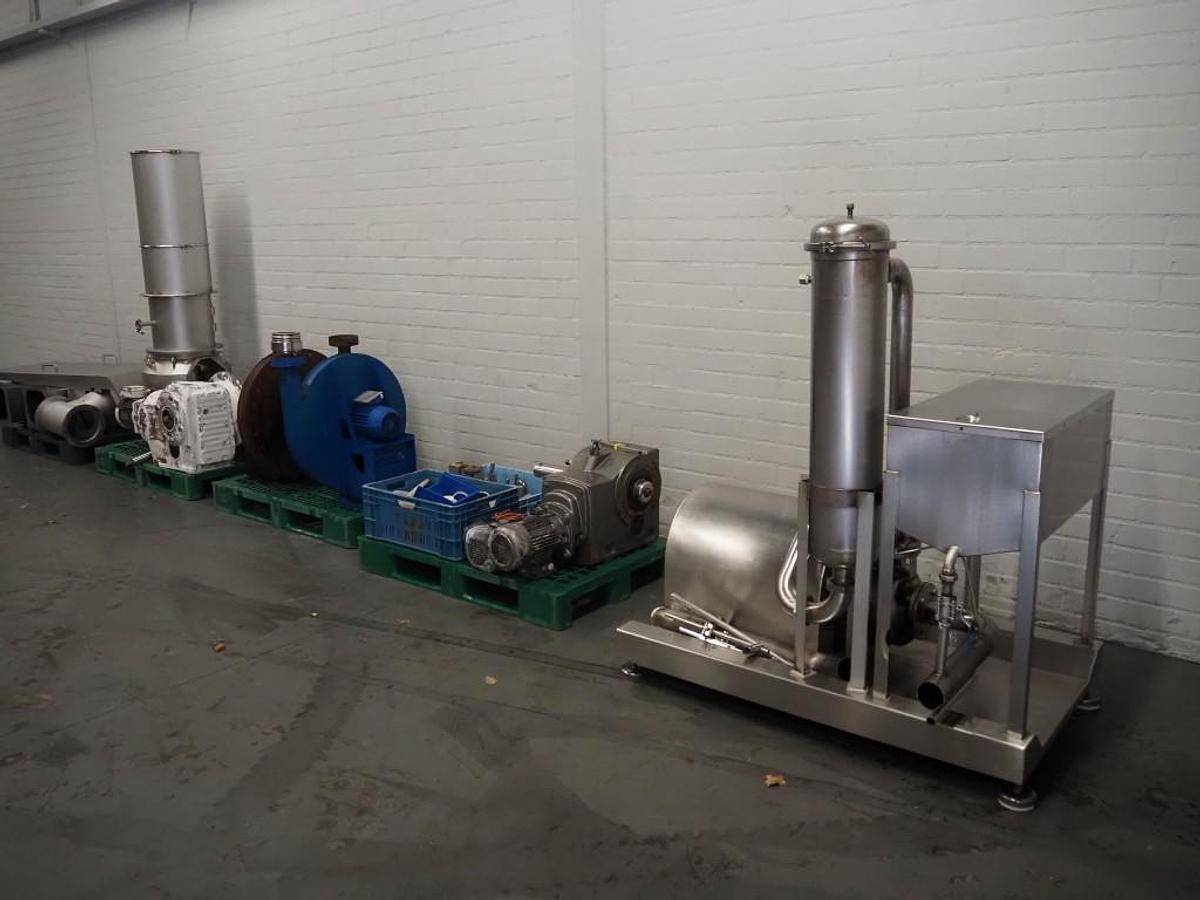

Including CIP system
