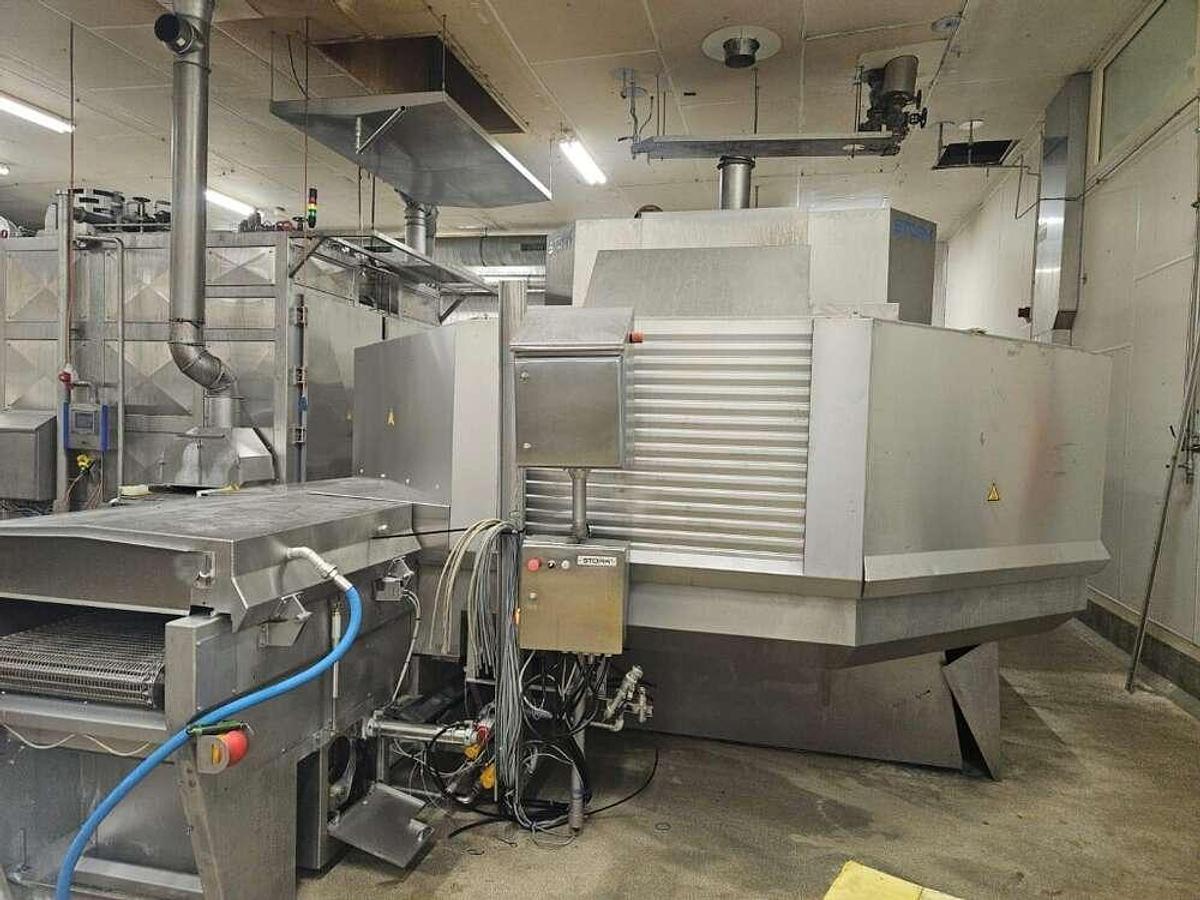

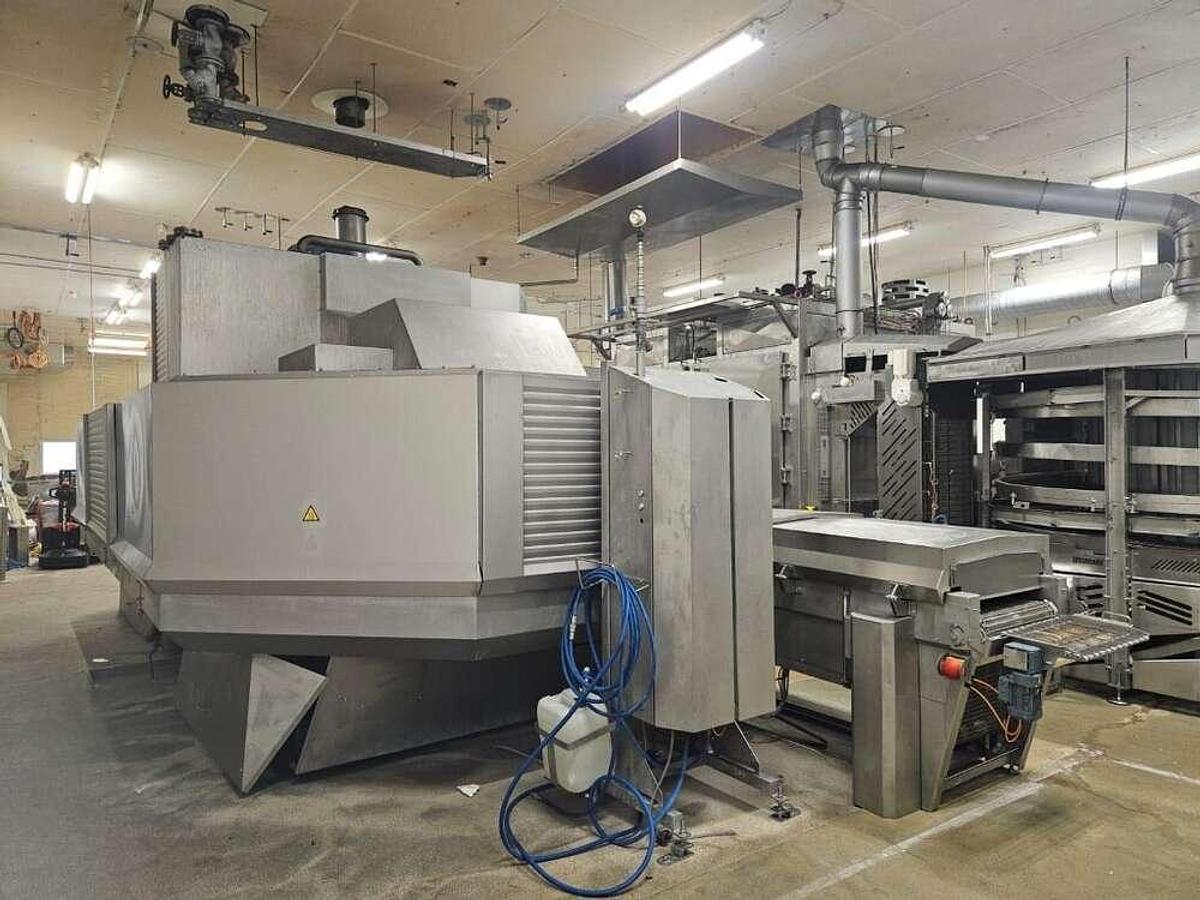

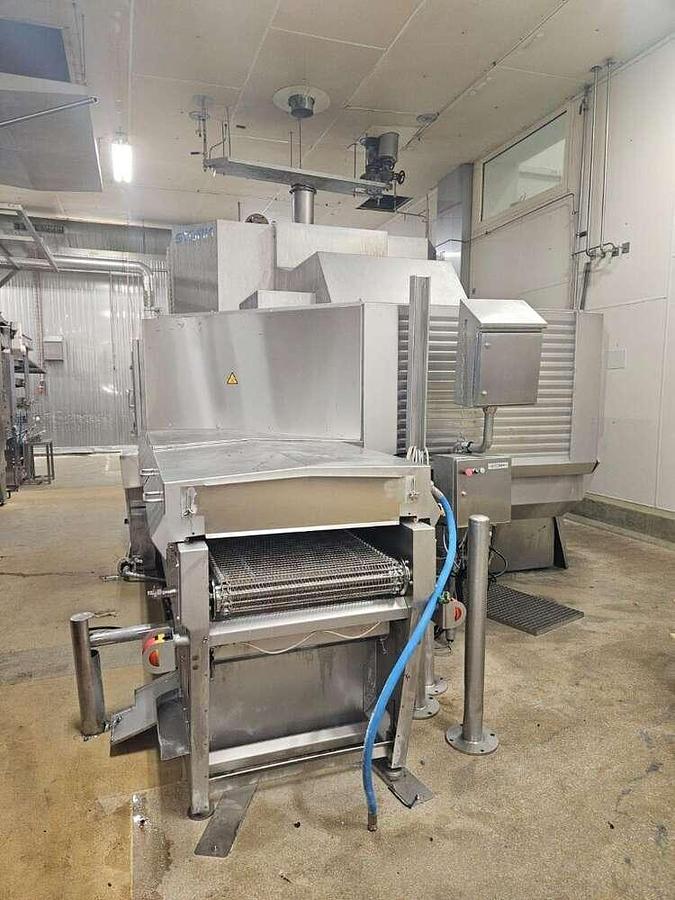

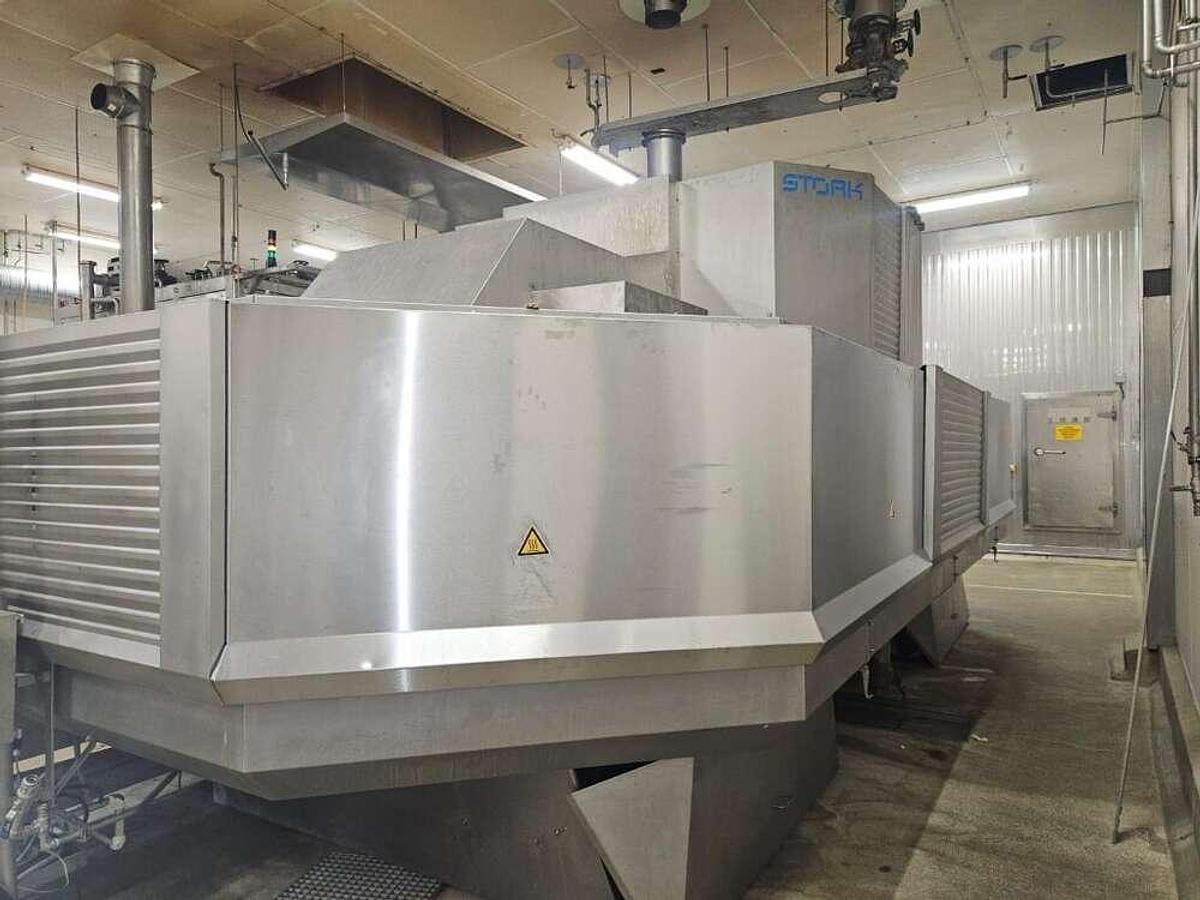

Stork spiral oven
or
Call +31 (0)499 390 964
Specifications
| Model | right hand execution |
| Condition | Used |

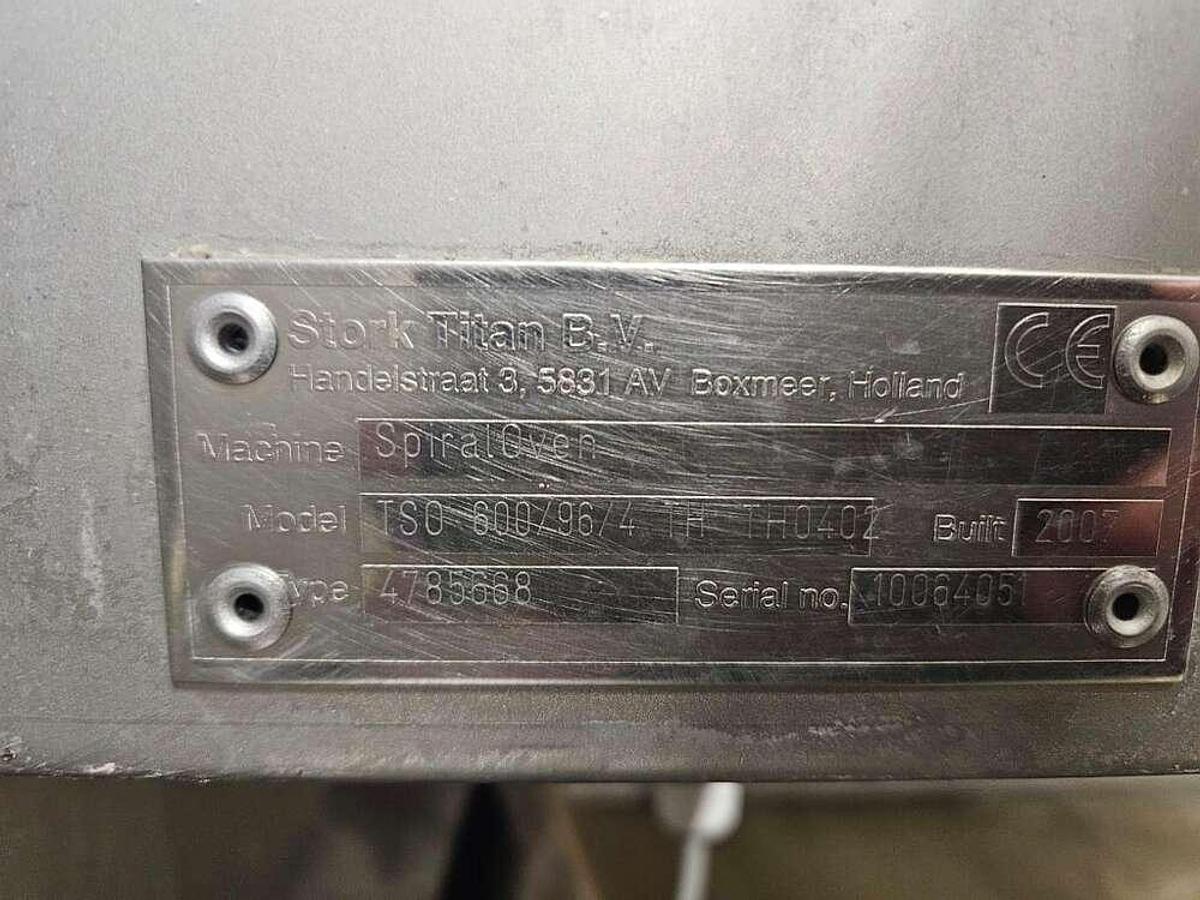

| Serial Number | 10064051 |
| Stock Number | 3340P |
| Year of constructon | 2007 |
| Belt width | 600 mm |
| Belt length | 96 m |
| Tiers | 2 x 4 pc |
| Heating | thermal oil, 400 kW at 180°C |
| Steam | max 1500 kg/h |
| Exhaust | Ø 252 mm, 1000 m³/h |
| Compressed air | 6 - 8 Bar |
| Cold water | 1 - 20°C, 3 m³/h |
| Hot water | 20 - 60°C, 4 m³/h |
| Power | 3 x 400V, 50Hz, 40kW |
| Dimensions | 11040 x 4000 x 4975 mm |
| Weight | 20000 kg |
| Description | With belt washer and CIP |
