Clextral double screw extruder

Clextral extruder

Type: Evolum EV032 M

Extruder: 40D

Barrel length: 10 x 128 mm

Stroke length: 1420 mm

Water: 4.5 - 5.5 Bar

Compressed air: 6 Bar

Steam injection: 2 - 6 Bar

Power: 3 x 400V, 50Hz, 83kW

Dimensions: 4475 x 1200 x 2100 mm

Weight: 1905 kg

Only 80 working hours!

Clextral water pump

Type: CLX DKM

Flow: 6 - 42 l/h

Pressure: max 10 Bar

Reservoir: 7.5 litre

Power: 0.55 kW

Dimensions: 1265 x 350 x 700 mm

Clextral / Prominent oil pump

Type: GMXA1604

Flow: 0.3 - 2.5 l/h

Pressure: max 10 Bar

Reservoir: 10 litre

Dimensions: 900 x 700 x 1150 mm

Clextral High Moisture Extrusion Cooking die

HMEC type: 2 x 800 mm length

Material: CLX202

Internal section: 60 x 8 mm

Dimensions: 1900 x 700 x 1200 mm

TLV steam kit

Type: 2/10 TLV

Serial number: SV148

Steam flow: 2 - 10 kg/h

Steam pressure: 6 - 10 Bar

Maximum pressure: 10 Bar

Steam inlet: DN15, PN16

Steam outlet: DN15, PN16

Compressed air: 6 - 10 Bar

Dimensions: 700 x 1600 x 2200 mm

Weight: 150 kg

2 pc. Tooltemp thermoregulator

Type: TT1398-3

Serial number: 321-5642-1 / 2

Year of construction: 2021

Power: 3 x 400V, 50Hz, 7.9kW

Dimensions: 750 x 300 x 760 mm

Weight: 70 kg

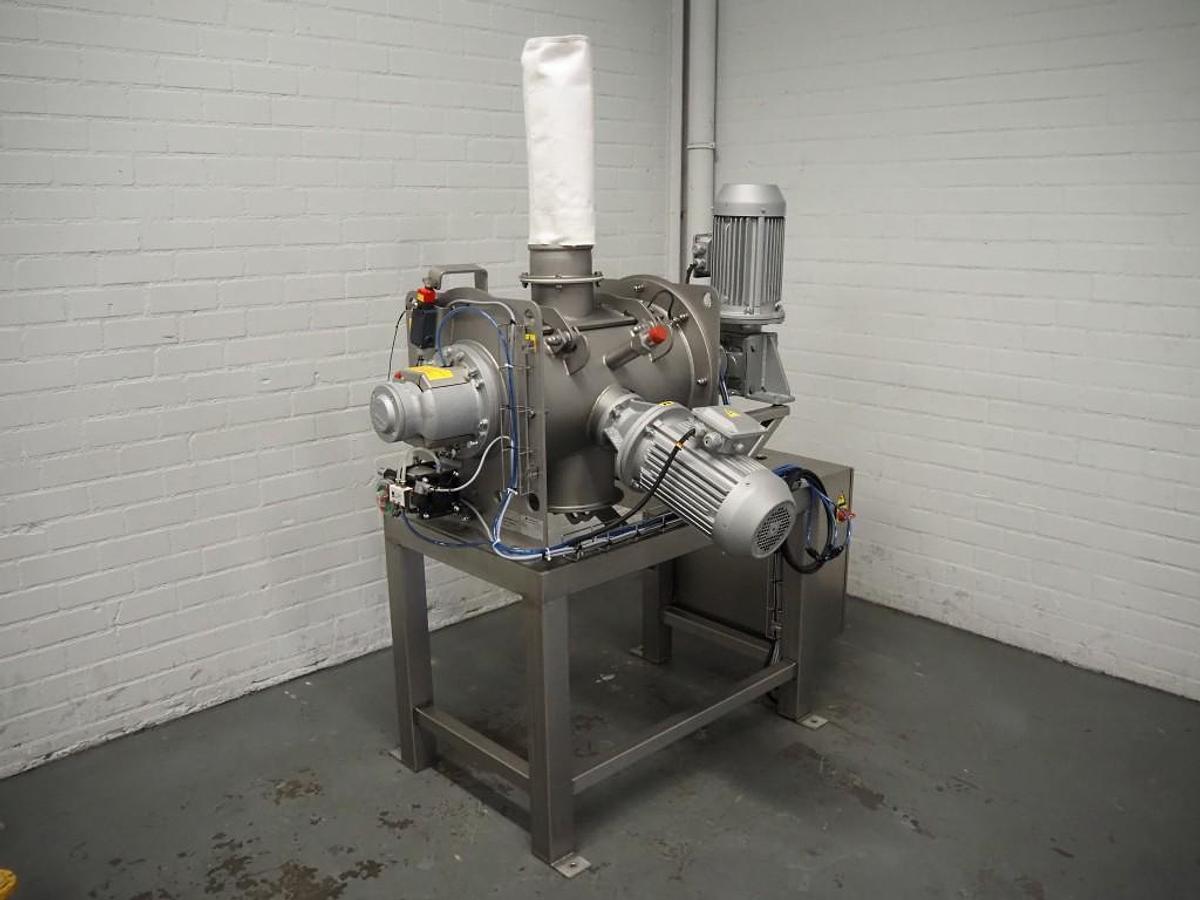

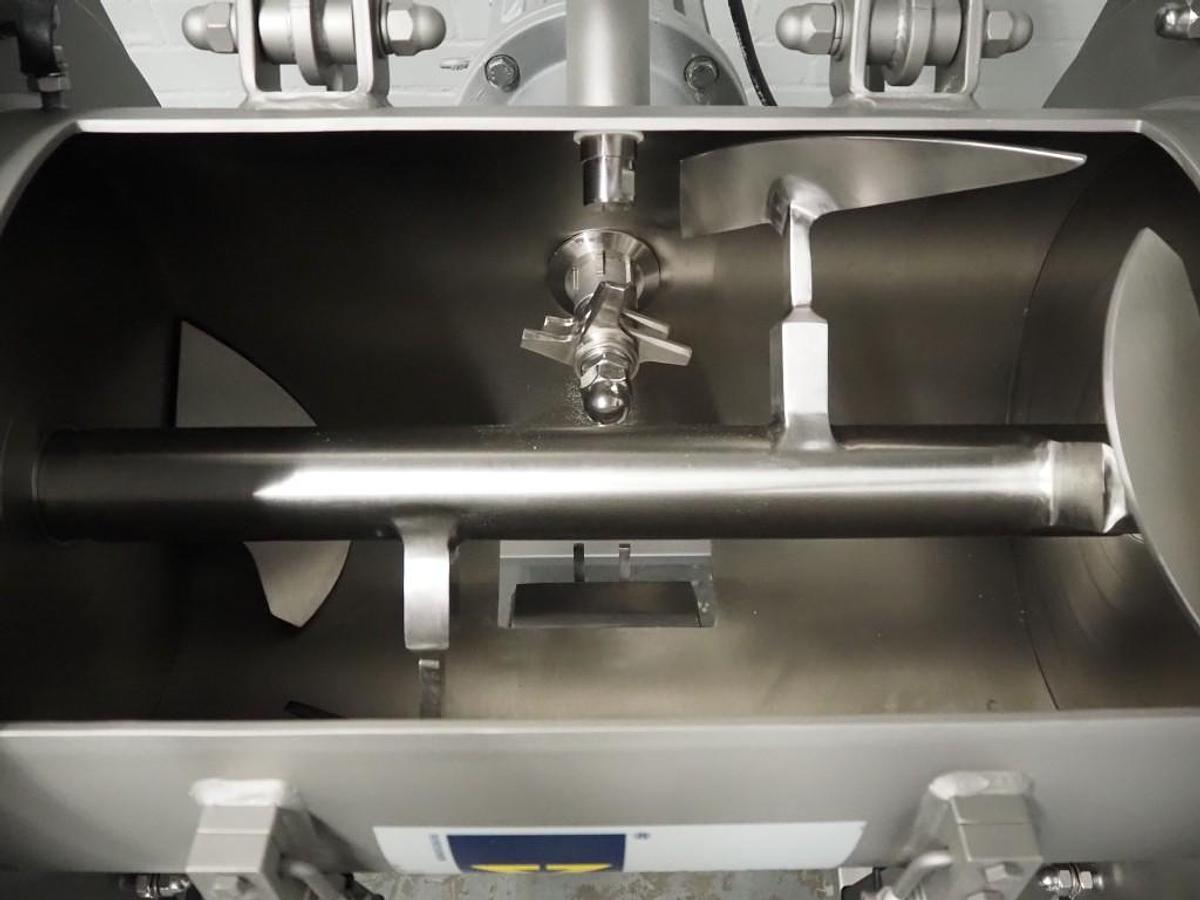

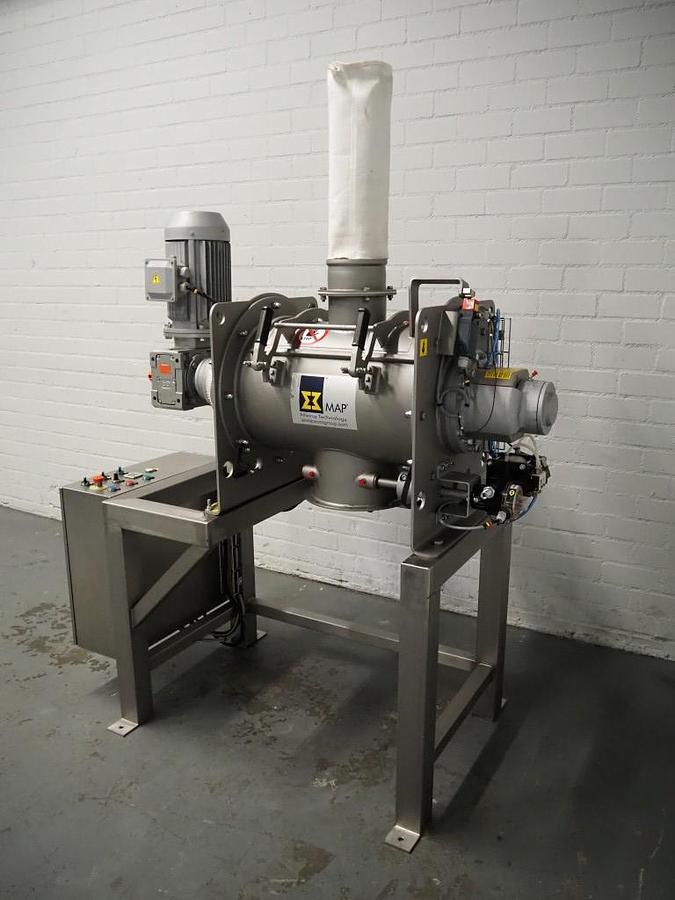

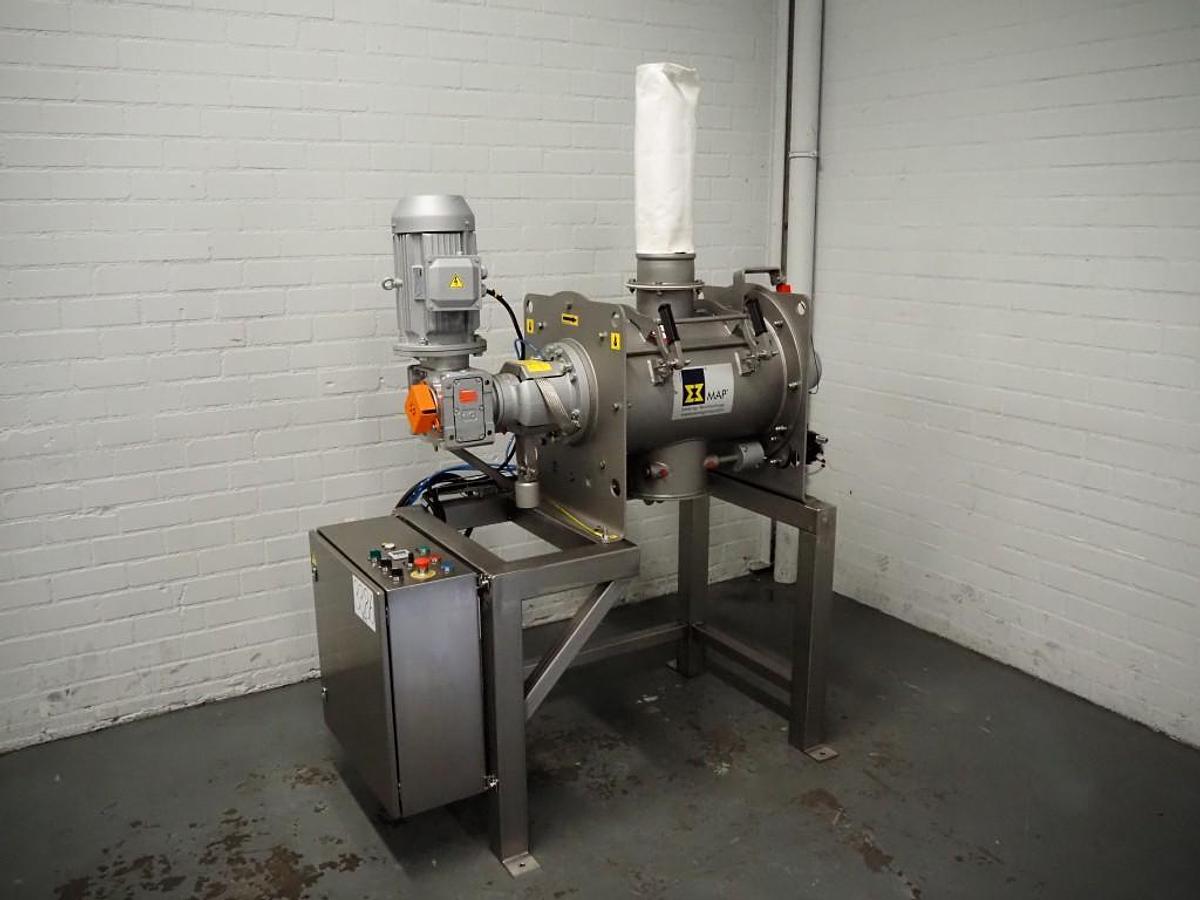

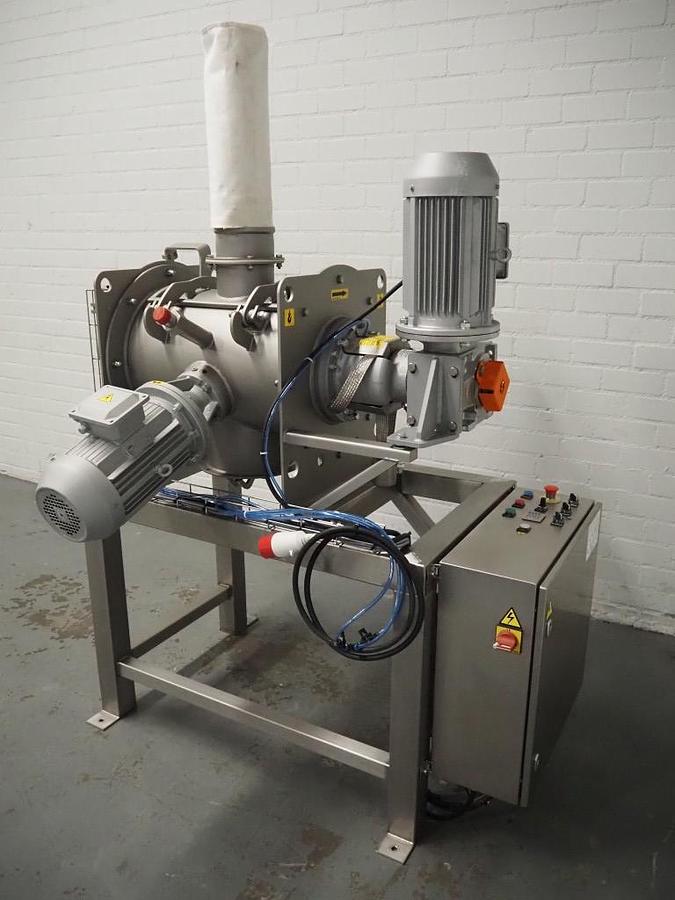

WAM Group plowshear mixer

Type: WBH20008C023

Serial number: 17WB220000121

Year of construction: 2022

Mixer: 75 litres

Dimensions: 1200 x 1600 x 1650 mm

Weight: 500 kg

Immequip feeding screw

Type: ELV 70/80-R

Hopper: 150 litres

Outfeed: Ø 100 mm

Power: 3 x 400V, 50Hz, 0.55kW

Dimensions: 3100 x 1350 x 2600 mm

Brabender dosing unit

Type: DDW-M-DDSR20

Serial number: 2200836.0636

Year of construction: 2022

Feed rate: 11 - 26 kg/h

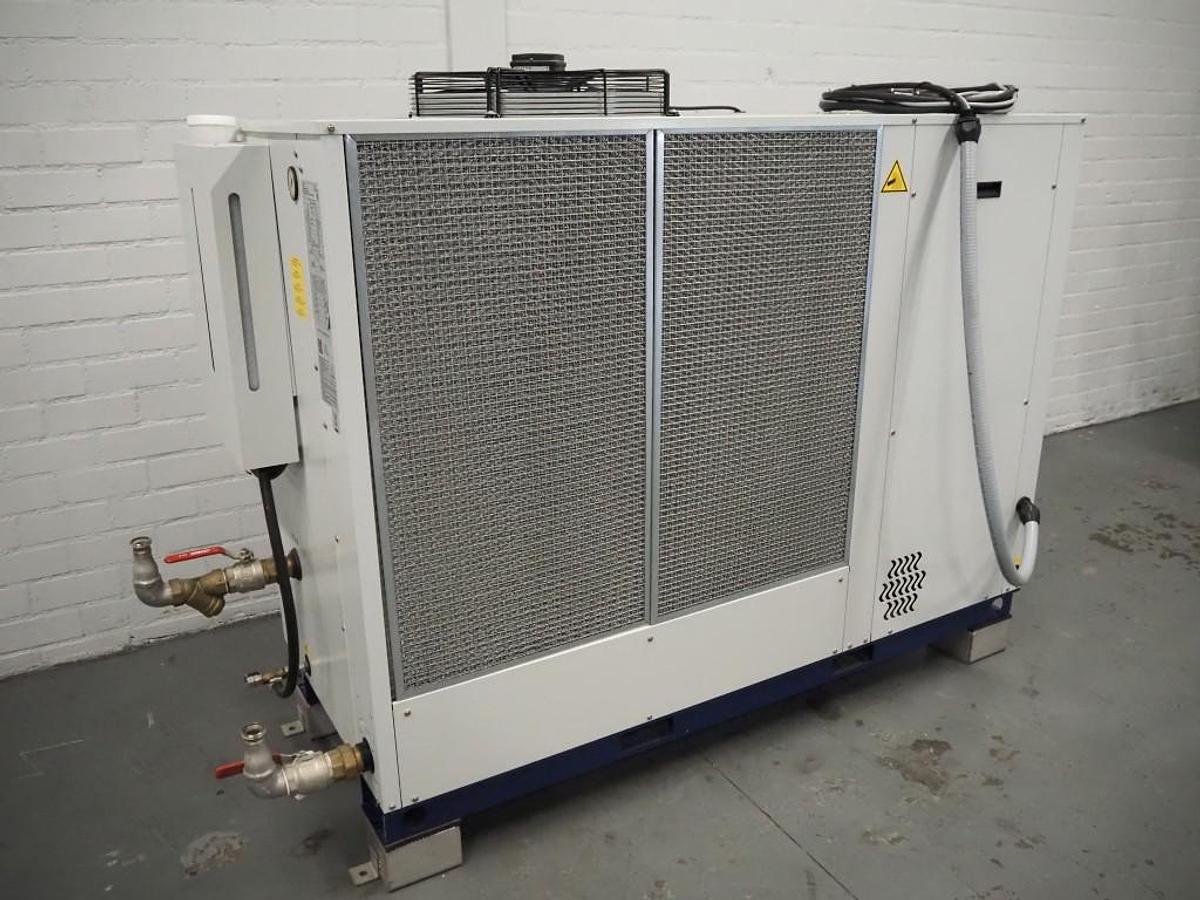

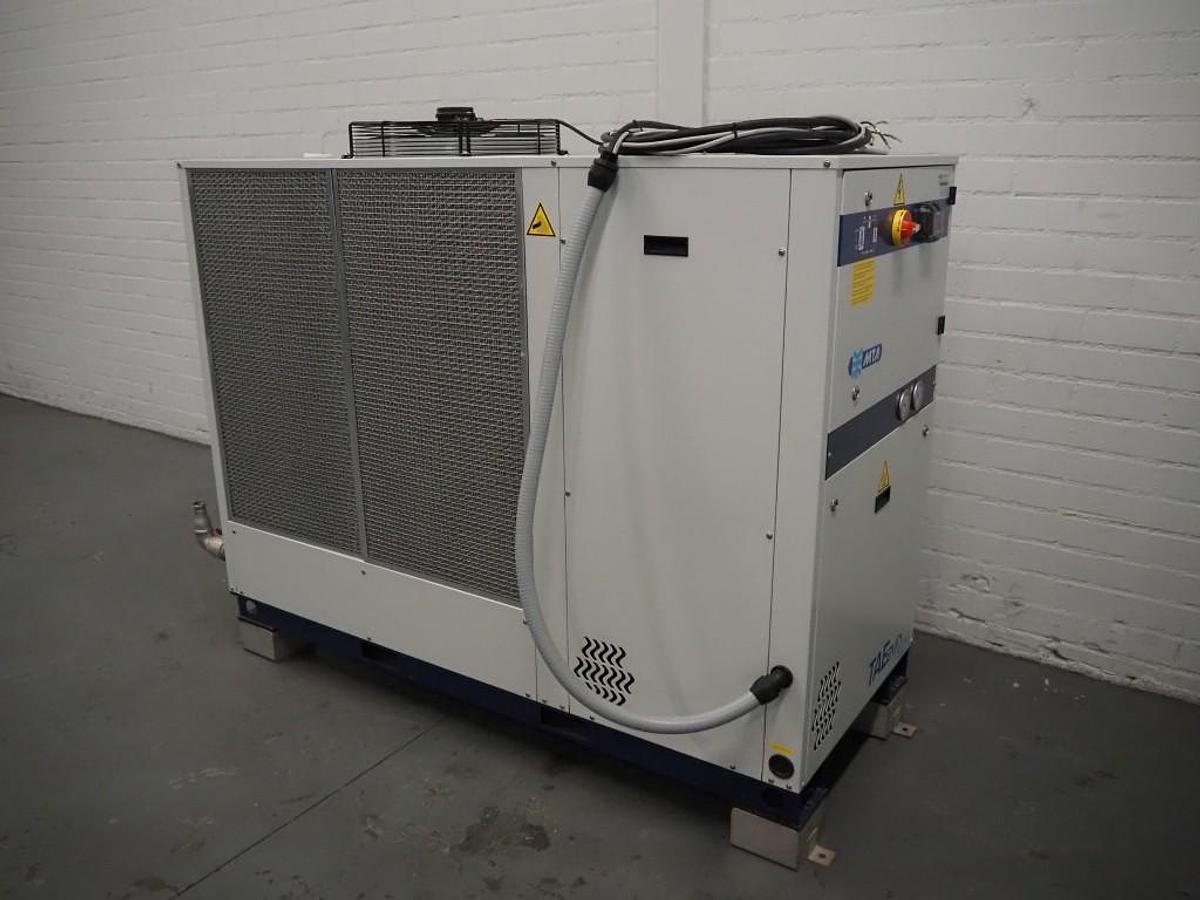

MTA France chiller

Type: TAEevo TECH 081

Serial number: 2200377928

Year of construction: 2021

Refrigerant: R410A

Cooling power: 20.6 kW

Power: 3 x 400V, 50Hz, 14.2kW

Dimensions: 1950 x 800 x 1500 mm

Weight: 340 kg
